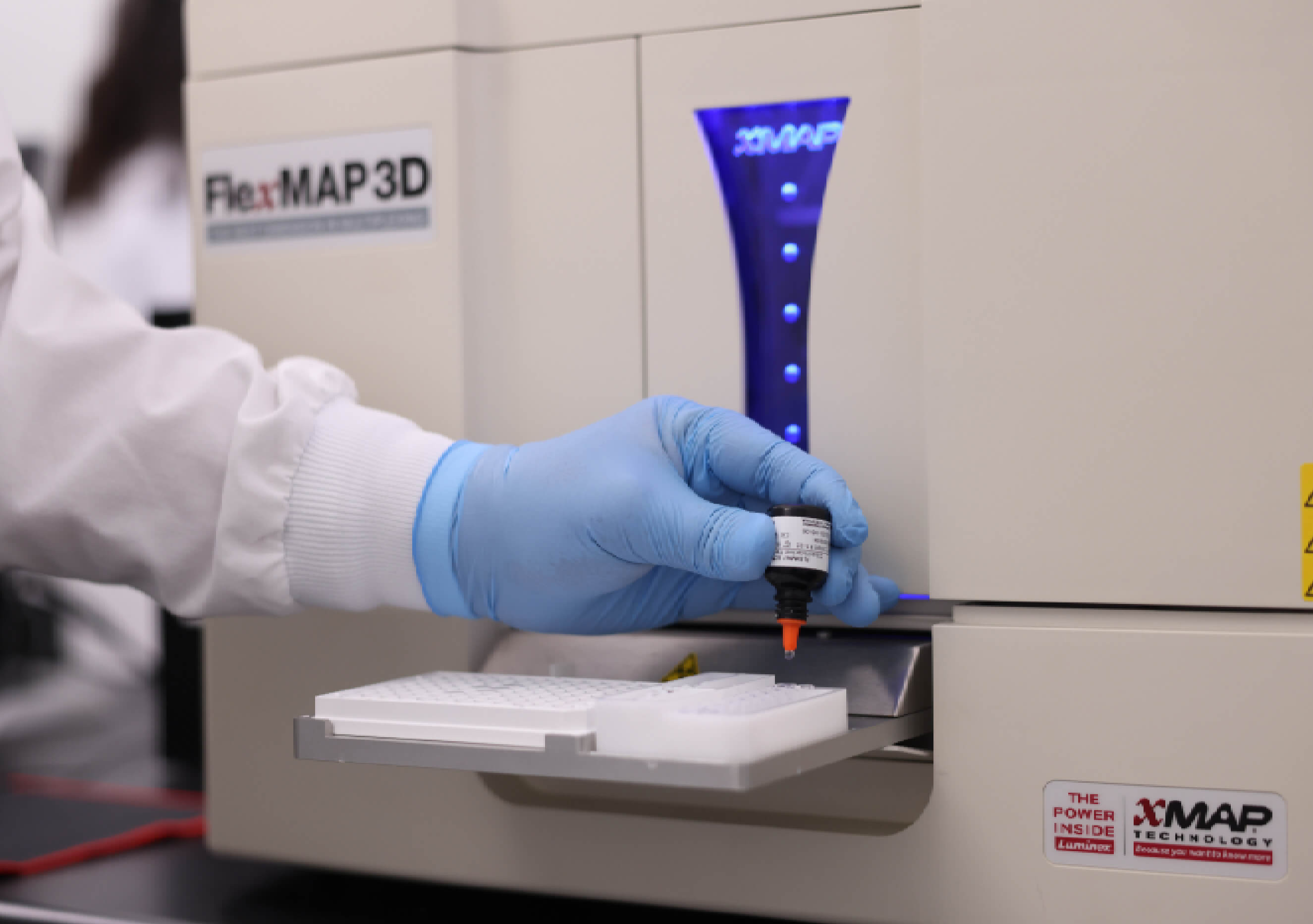

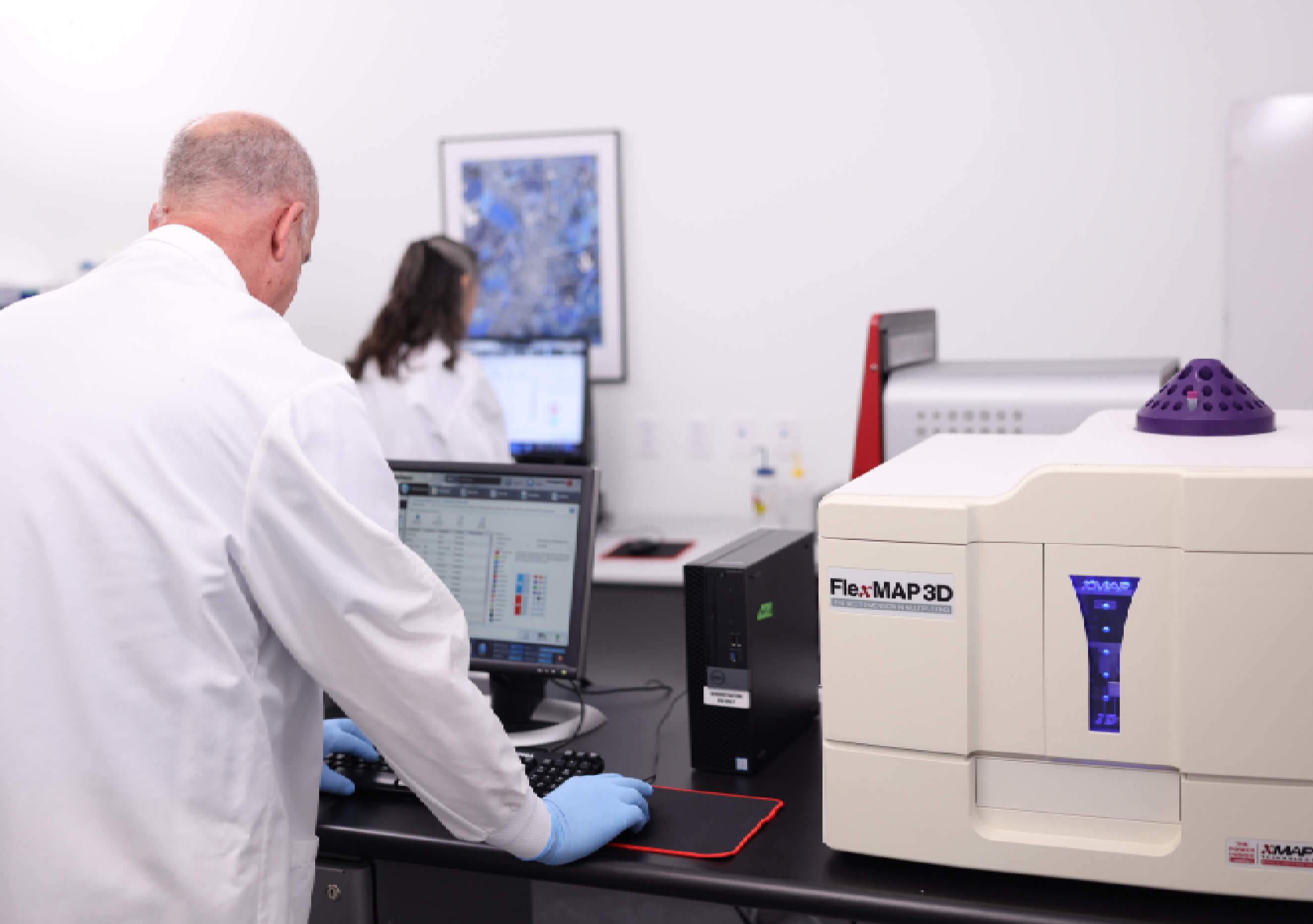

FLEXMAP 3D® System
High-speed, highly-multiplexed assays for breakthrough research
The FLEXMAP 3D®, a flow-based reader, offers fast read time, compatibility with both 96- and 384-well plates, and easy integration with front end automation systems. The platform uses both magnetic and non-magnetic microspheres and is capable of simultaneously measuring up to 500 genes or proteins from a small sample volume. Automated startup, shutdown, and maintenance routines make the FLEXMAP 3D® easy to use and maintain.
Powered by Bioz
FLEXMAP 3D® System main features
Automation/LIS compatibility
High-plexing capability
Reliability
Why choose FLEXMAP 3D®
Luminex’s most advanced and versatile multiplexing platform and is the platform of choice for high-throughput applications.
Genomic and proteomics drug discovery
- Single nucleotide polymorphisms (SNPs)
- Expression analysis
- High-throughput compound screening
- Kinase selectivity screening of candidates
- Serological studies
- Multianalyte drug and drug metabolite profiling
- Toxicology & drug metabolism studies
- Drug target validation (receptor-ligand analysis)
Diagnostic applications
- Genetically inherited disease screening (e.g., cystic fibrosis)
- HLA typing for transplantation
- Autoimmune disease profiling
- Molecular pathogen detection
Research assay applications
- Gene expression analysis
- Genotyping
- Protein expression analysis
- Animal-model serum analyte profiling
- Antibody epitope mapping
- Enzyme/substrate research
- Protein-protein interaction analysis
Systems
Product |
Registration Status |
Part Number |
|---|---|---|
FLEXMAP 3D® System with xPONENT® 4.3 |
IVD |
FLEXMAP-3D |
FLEXMAP 3D® System with xPONENT® 4.3 |
RUO |
FLEXMAP-3D-RUO |
Technical Specifications
| |
FLEXMAP 3D® System with xPONENT® 4.3 |
|---|---|
General |
|
| Physical Dimensions |
58.4 cm x 65.3 cm x 54.7 cm (23” x 25.7” x 18”) |
| Weight |
91 kg (200 lb) |
| Power Supply |
100-120 volts (US) or 200-240 volts (EU) |
Performance |
|
| Multiplexing |
Up to 500 biomarkers in a single sample volume |
| Sensitivity |
200 to 500 fluorochromes per xMAP® Microsphere |
| Dynamic Range (Typical) |
>4.5 logs |
| Read Time |
96-well plate in ≤ 20 min (up to 144,000 tests/hour) |
| Read Time |
384-well plate in ≤ 75 min (up to 153,600 tests/hour) |
| Daily Startup/Shutdown |
≤ 30 min |
IQ/OQ
Installation Qualification (IQ) and Operational Qualification (OQ) services are performed by our Field Service Engineers and are critical to ensuring that your instrument is properly installed and operating according to specifications. Luminex offers standard IQ/OQ for new instruments, and yearly OQ to confirm system reliability of any xMAP® instrument in your laboratory.
For more information, email europe@luminexcorp.com, request information here or contact your Luminex representative.
Product |
Part Number |
|---|---|
FLEXMAP 3D® IQ/OQ with Installation |
VP-FM3D-XPON-IQOQ |
FLEXMAP 3D® Yearly OQ |
VP-FM3D-XPON-OQ |
Download the informational brochure here.
Software
xPONENT® is a modular, flexible software package for control of the MAGPIX®, Luminex® 200™, and FLEXMAP 3D®. The software’s graphical user interface (GUI) follows the typical assay workflow but can be customized to meet the needs of a specific laboratory. Navigation wizards and automated routine operations such as startup, shutdown, calibration, and performance verification further enhance system usability and result in increased walk-away time.
Product |
Description |
Part Number |
|---|---|---|
PC with xPONENT® 4.3 Pre-installed |
xPONENT® Software provides the basic functionality required for instrument control, data acquisition, and data reduction. xPONENT® 4.3 is available as pre-installed software on a Luminex-supplied PC. |
XPON-UPGRD-FM3D |
21 CFR Part 11 |
For laboratories working under the FDA’s 21 CFR Part 11 regulations, xPONENT® offers multilevel user management, full audit trail, electronic records, and electronic signatures. |
XPON-21CFR |
Automation Connectivity Module |
The automation module along with a device driver enable communication between the reader and a front-end automation platform. |
XPON-AUTO |
LIS Connectivity Module |
This module allows communication with an external Laboratory Information System (LIS) database by allowing the export of patient result data and the import of patient sample information in ASTM format; connection to your LIS system may require the use of middleware. |
XPON-LIS |
Security Module |
The secure xPONENT® package includes all the basic functionality, plus allows an administrator to set up user access levels. |
XPON-SECURITY |
Reagents
Associated reagents for the FLEXMAP 3D® System are
Product |
Registration Status |
Part Number |
|---|---|---|
FLEXMAP 3D® Calibration Kit, 25 Uses |
IVD RUO |
F3DIVD-CAL-K25 F3D-CAL-K25 |
FLEXMAP 3D® Performance Verification Kit, 25 Uses |
IVD RUO |
F3DIVD-PVER-K25 F3D-PVER-K25 |
xMAP® Sheath Fluid PLUS, 20L |
IVD RUO |
40-50035 40-50021 |
Sheath Concentrate PLUS Pack (20X) |
IVD RUO |
40-50036 40-50023 |
Accessories & Spare Parts
Product |
Part Number |
|---|---|
Sheath Filter w/ Quick Disconnect |
CN-0010-01 |
Syringe, 500 µl with Seal |
CN-0013-01 |
6-Month Preventive Maintenance Kit |
CN-0215-01 |
FLEXMAP 3D® Swivel Base |
CN-0216-01 |
Sample Probe Needle |
CN-0221-01 |
Heater Block for 384-Well Microtiter Plates |
CN-0223-01 |
Heater Block for 96-Well Microtiter Plates |
CN-0224-01 |
FLEXMAP 3D® Off-Plate Reagent Block |
CN-0225-01 |
Sample Probe Height Adjustment Kit |
CN-0263-01 |
96-/384- Well Probe Height Adjustment Tool |
CN-0298-01 |
Barcode Scanner, USB |
CN-PC03-01 |
